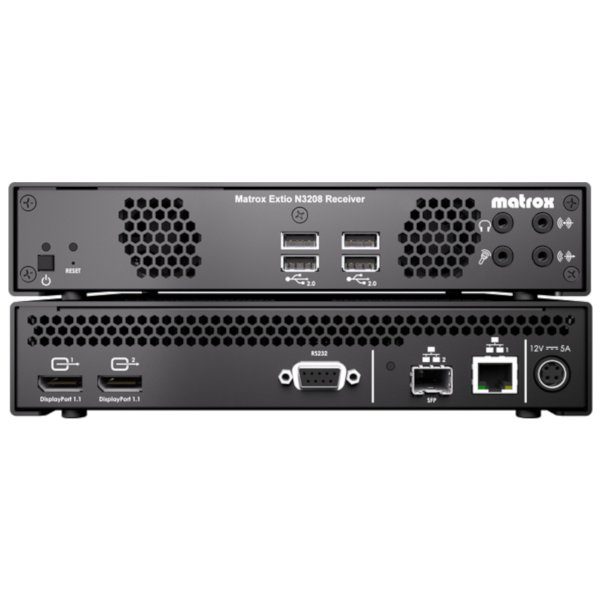

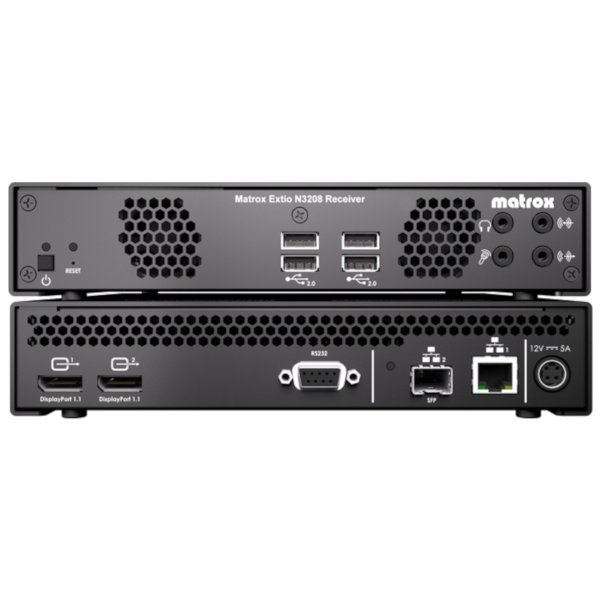

Matrox Extio 3 N3208 IP KVM Extender Receiver

High Performance, Dual Display IP KVM Extender (Receiver Appliance).

SKU: XTO3-N3208RX Categories: ,


Matrox Extio 3 N3208 Dual Display IP KVM Extender Receiver Appliance

Matrox® Extio N3208 IP KVM extenders support dual-display configurations with exceptional performance over standard Gigabit Ethernet at unprecedented low-bitrates. Extio N3208 can be configured as a point-to-point or networked KVM extender, extending multiple video, keyboard, mouse, USB 2.0, and audio signals using a single fiber optic or copper cable. Ready compatibility with standard network switches significantly diminishes the total cost of ownership to deliver a scalable KVM matrix switching solution.

• Option to de-embed digital audio and convert to analog audio
• Lockable power connector, external 12V power supply unit
• Standalone or rack-mountable unit (1U 1⁄2 R)
• Status LED indicators
• On/off and recessed reset button
Connections to Local Devices
• 2x DisplayPort 1.1 video output connectors
• 6x USB 2.0 Type A
• Line in 3.5 mm, line out 3.5 mm, mic in 3.5 mm, headphone out 3.5 mm
• 1x RJ45 network port
• 1x SFP cage (supports SFP multimode or single-mode transceiver,
sold separately)
Part Number
• XTO3-N3208RX
Maximum Supported Resolution
• 1x 2560×1600 @60Hz
• 2x 1920×1200 @60Hz
