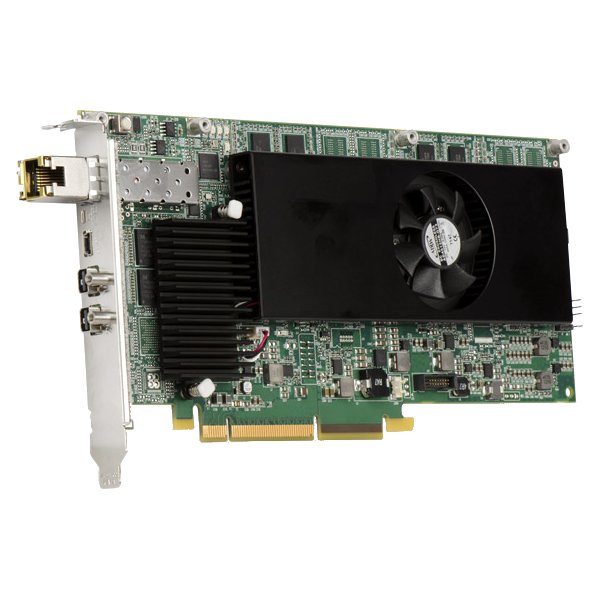

Matrox Extio 3 N3208 IP KVM Extender Transmitter Card

Description

Matrox Extio 3 N3208 Dual Display IP KVM Extender Transmitter Card

Matrox® Extio N3208 IP KVM extenders support dual-display configurations with exceptional performance over standard Gigabit Ethernet at unprecedented low bitrates. Extio N3208 can be configured as a point-to-point or networked KVM extender, extending multiple video, keyboard, mouse, USB 2.0, and audio signals using a single copper or fiber optic cable. Ready compatibility with standard network switches significantly diminishes the total cost of ownership to deliver a scalable KVM matrix switching solution.

General
• Embedded digital audio through DisplayPort, with option to de-embed digital audio on the receiver unit
Connections to Host System
• PCI Express x8 connector
• 2 x Mini DisplayPort 1.1
• 1x USB 2.0 Type mini-B
Link
• 1x SFP cage with RJ45 copper transceiver (upgradeable to fiber multimode or single-mode SFP transceiver, sold separately)
Part Number
• XTO3-N3208CTX
Maximum Supported Resolution
• 1x 2560×1600 @60Hz
• 2x 1920×1200 @60Hz
